Production Intruduction
1、Quantum rings are contactless devices.
2、The product is divided into two semicircular parts and is installed outside the water pipe, ensuring no contact with the water.
3、The product can be applied to a variety of pipeline systems without the need for disassembly, making installation a straightforward process.
4、The installation quantity and location must be determined by a qualified technician, based on factors such as water quality, water flow, and pipeline .
5、This product is available in 18 standard sizes, making it suitable for a range of applications, from industrial circulating water pipes to household water pipe systems.
WELLAN® and TETERADOM® quantum rings have a proven track record in domestic and industrial water treatment across the globe.
The numerous positive testimonials from our customers, the extensive data demonstrating the success of our technology, our proven track record, and the expert analysis and testing reports all confirm that our WELLAN technology is a forward-thinking, high-end technology.
Working Principle
Wellan’s water treatment technology is a practical example of how quantum physics can be applied in a commercial setting. The core is programmed according to a unique, customised oscillation frequency and uses a unique laser recording input technology to record this special ultra-fine oscillation setting on the dielectric material. This is achieved by interacting with a dielectric material made of a special alloy comprising silicon and aluminium as the main components.
The dielectric material conducts pre-recorded ultra-fine vibration waves to the medium (such as water or oil), which causes it to generate micro-resonance. Subsequently, the vibration of the medium alters the amplitude of the material waves of various inorganic and organic substances, thereby modifying the form of the combination between its molecules. The results demonstrate that the structure of the lime scale becomes loose, the iron oxide rust is decomposed and detached, and the bacteria and algae life substances are reduced.
Ultimately, four significant challenges in water treatment were successfully addressed through the application of quantum physics.
How To Install
1. Measure the circumference of the pipe, the circumference/3.14 is the A value in the specification table below. Order the correct size equipment based on the diameter value.
2. Choose a suitable location for the ring: in the straight part of the main pipe which close to the water inlet.
3. Please ensure that electrical devices or power lines are at least 1 foot away,otherwise the effectiveness of the ring may be influenced.
Step 1.

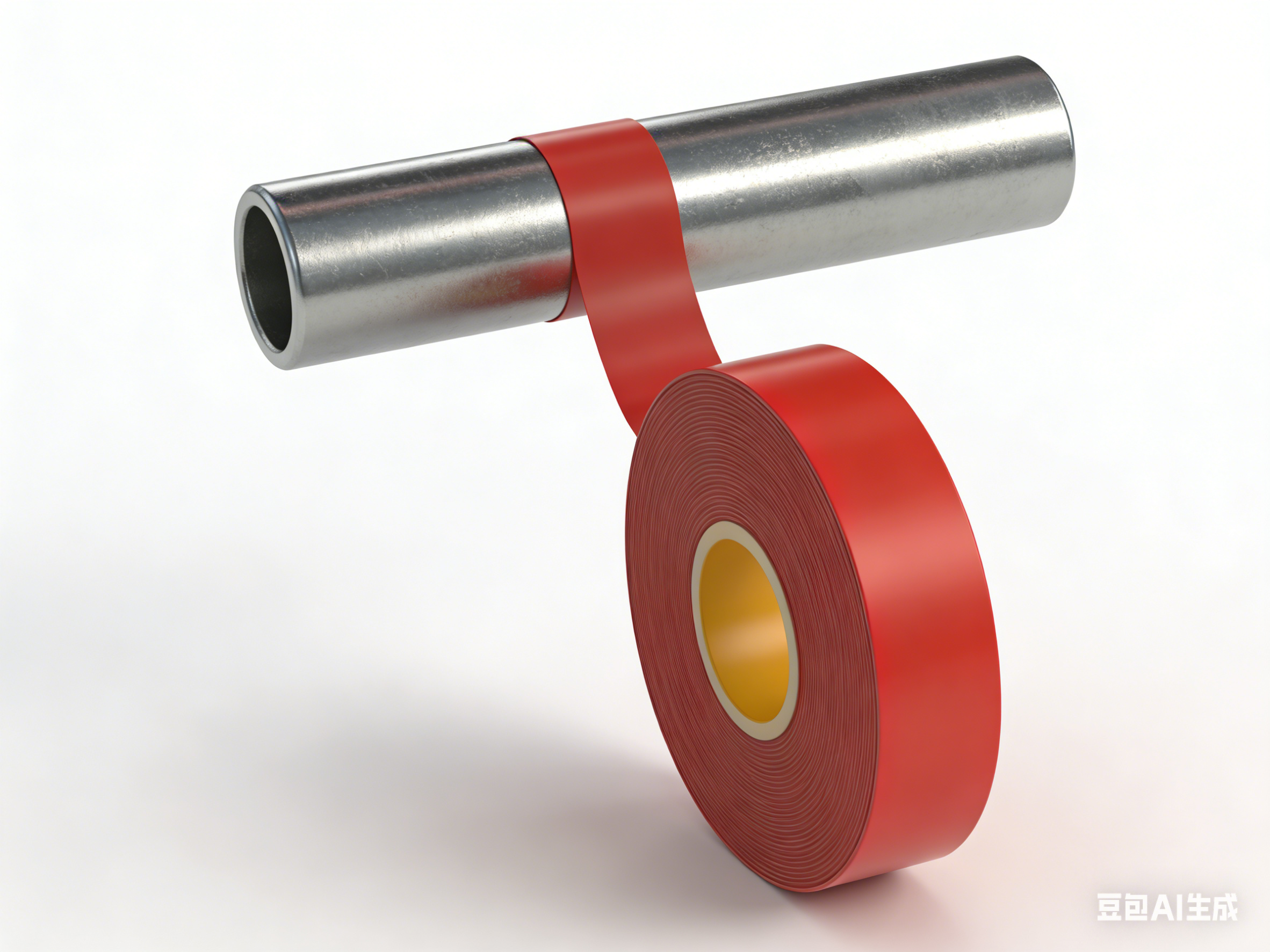

Wrap the pipe with red insulating tape to prevent any reaction of the metals.
Step 2.

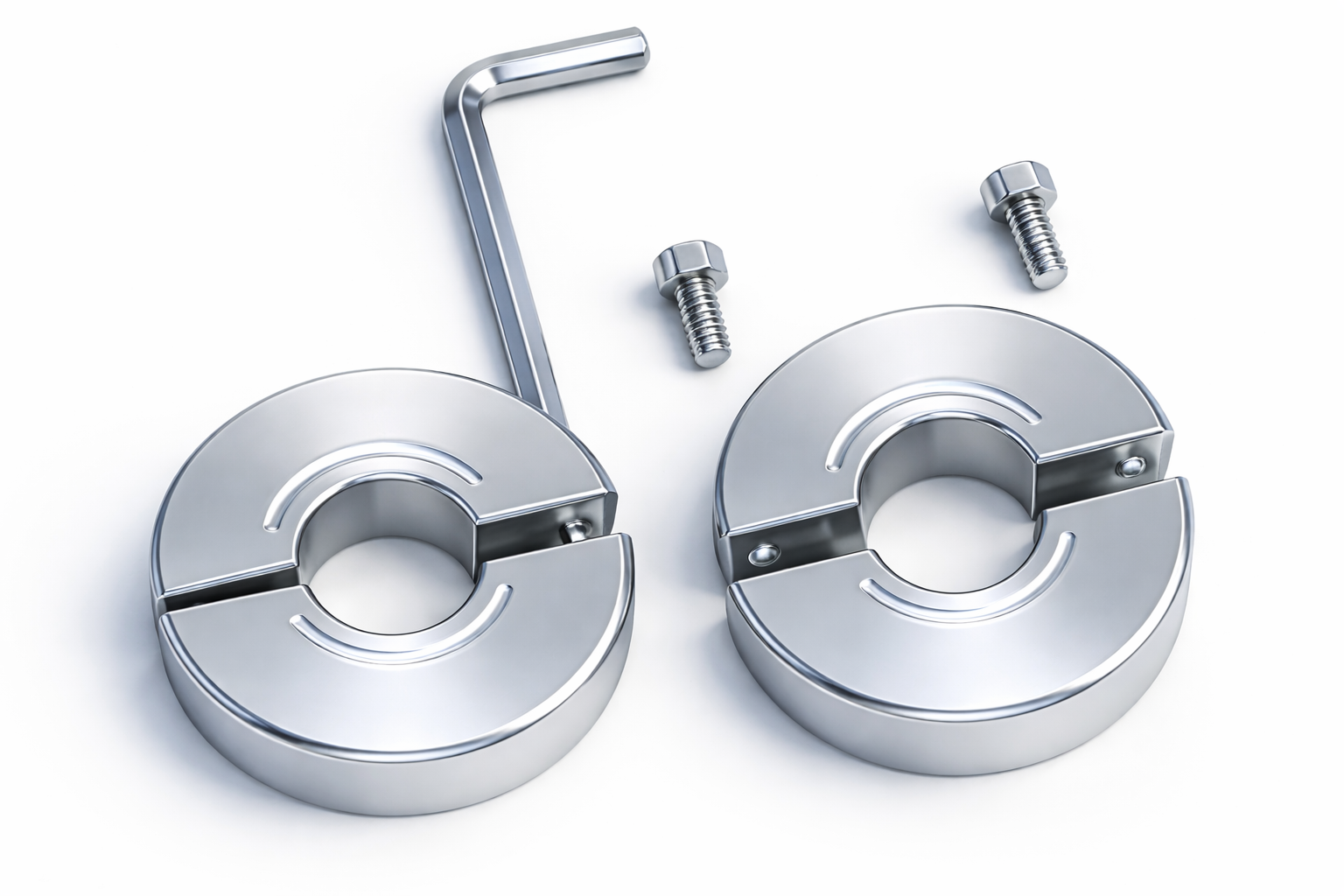

Loosen both of the screws with an Hex key. The ring separates into two halves.
Step 3.

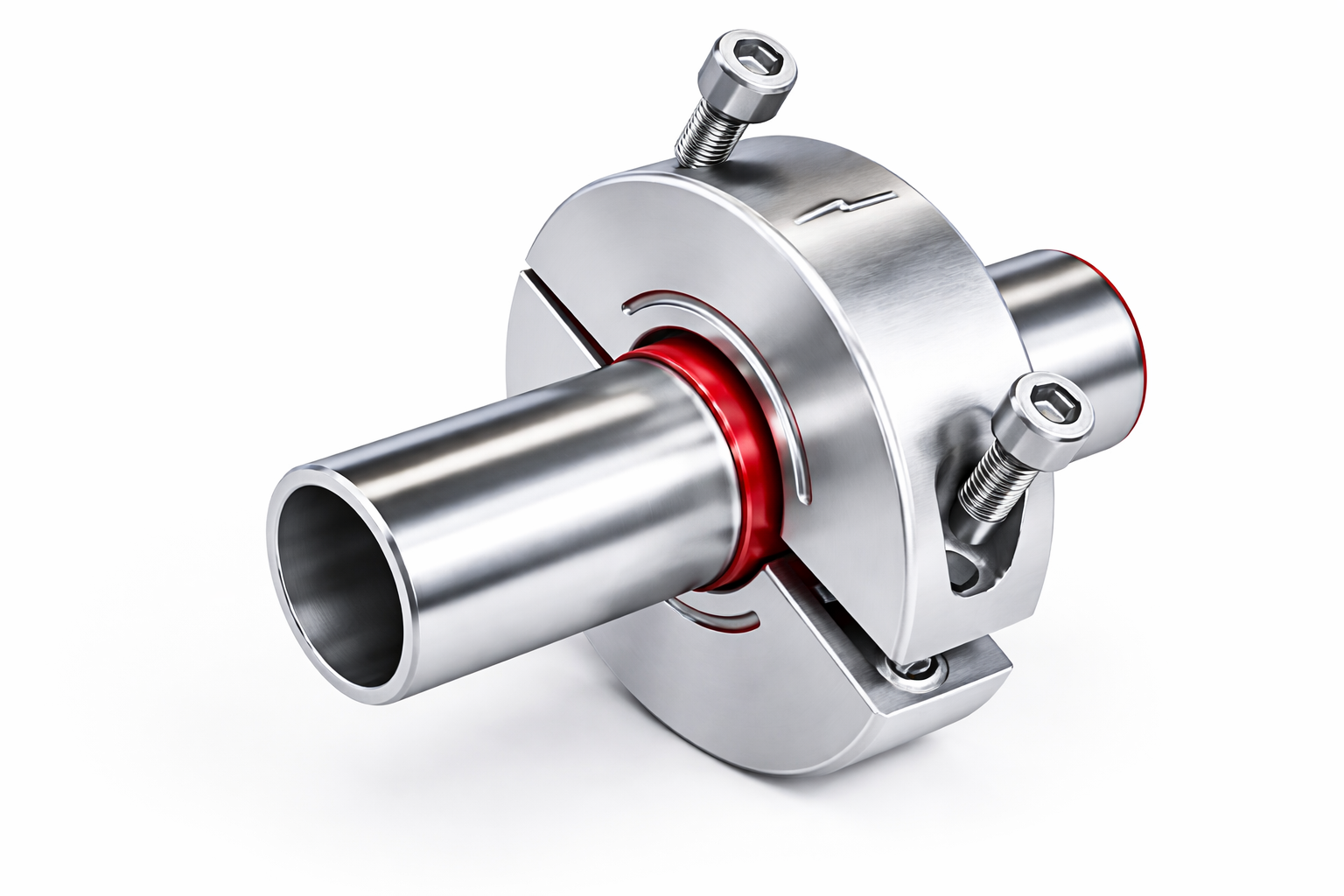

Set both of the ring halves onto the prepared section of the pipe.Make sure arrow on the ring is in the direction of the flow.
Step 4.

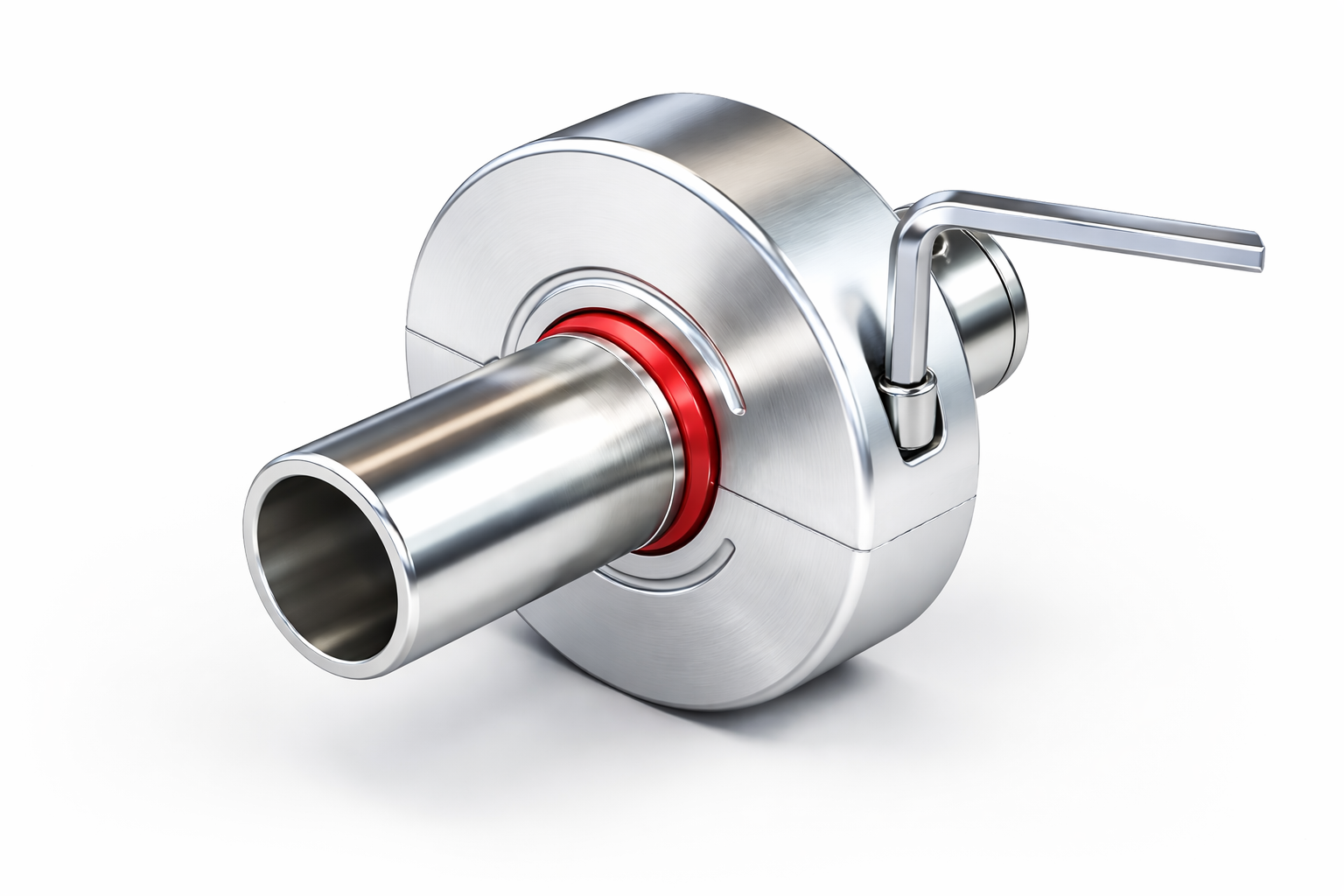

Tighten the two halves of the collar again. Do not over-tighten. The gap between the two halves of the collar should be less than 0.01 mm.
How To Choose The Correct Size
1. Measure the circumference of the pipe ,then calculate the Diameter (by circumference/3.1415). Order the correct size equipment based on the diameter value.
2. Choose a suitable location for the ring: in the straight part of the main pipe which close to the water inlet.
3. Please ensure that electrical devices or power lines are at least 1 foot away,otherwise the effectiveness of the ring may be influenced.

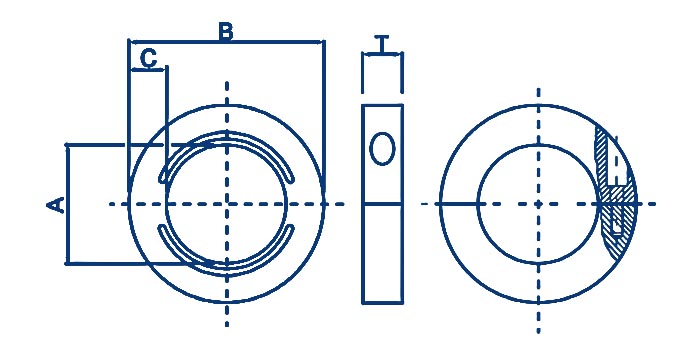

| Item Code | Size (in) | DN(mm) | A(mm) | B(mm) | C(mm) | T(mm) |
| TM-15 | 1/2" | DN15 | 36 | 96 | 30 | 50 |
| TM-20 | 3/4" | DN20 | 36 | 96 | 30 | 50 |
| TM-25 | 1" | DN25 | 36 | 96 | 30 | 50 |
| TM-32 | 1 1/4" | DN32 | 44 | 96 | 26 | 50 |
| TM-40 | 1 1/2" | DN40 | 52 | 152 | 50 | 50 |
| TM-50 | 2" | DN50 | 65 | 165 | 50 | 60 |
| TM-65 | 21/2" | DN65 | 79 | 179 | 50 | 60 |
| TM-80 | 3" | DN80 | 92 | 192 | 50 | 60 |
| TM-100 | 4" | DN100 | 122 | 222 | 50 | 60 |
| TM-125 | 5" | DN125 | 144 | 244 | 50 | 60 |
| TM-150 | 6" | DN150 | 175 | 275 | 50 | 60 |
| TM-200 | 8" | DN200 | 220 | 320 | 50 | 60 |
| TM-250 | 10" | DN250 | 282 | 382 | 50 | 60 |
| TM-300 | 12" | DN300 | 340 | 440 | 50 | 60 |
| TM-350 | 14" | DN350 | 384 | 484 | 50 | 60 |
| TM-400 | 16" | DN400 | 434 | 534 | 50 | 60 |
| TM-700 | 28" | DN700 | 730 | 830 | 50 | 60 |
